CORREA AXIA-70 mobile column milling machine
Metal processing
AXIA-70
Nicolas Correa Spain
2007 Spain
SM2504213
Machine Details
Item Details
| Name | CORREA AXIA-70 mobile column milling machine |
|---|---|
| Item Code | SM2504213 |
| Model No | AXIA-70 |
| Serial No | -- |
| Usage | used |
| Industry | Metal processing |
| Manufacturer | Nicolas Correa |
| Year of Manufacture | 2007 |
| Country of Origin | Spain |
| Posted On | 25-04-2025 |
| Machine Location | Spain |
Description

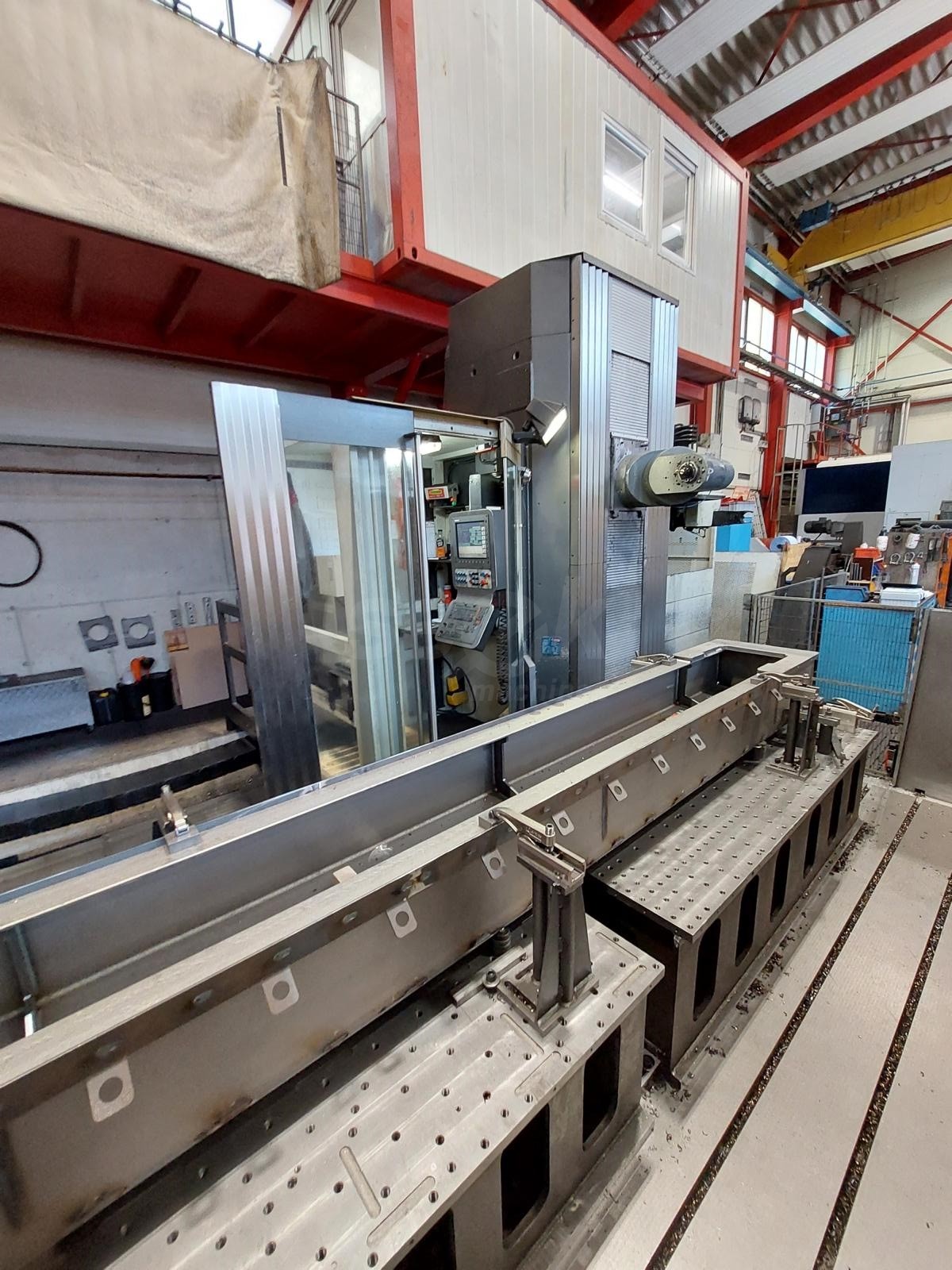

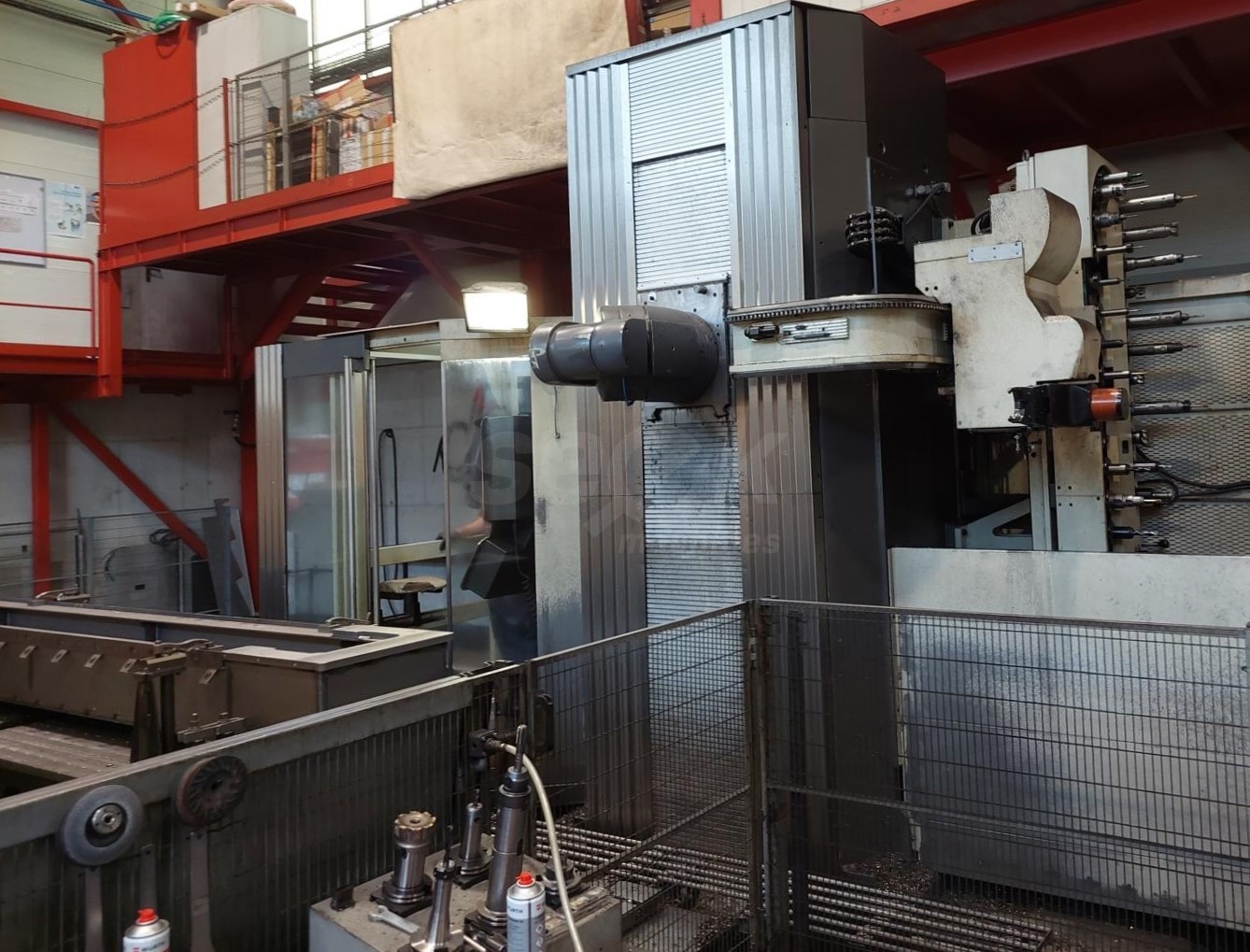

This second-hand Axia-7 Mobile Column Mobile milling machine is equipped with Heidenhain 530. It offers 7,000 mm on the X axis, 1,250 mm on the Y and 1,500 mm on the Z axis. In addition, it has an automatic UAD head with precision of 0.02º-0.02º and an ISO 50 cone.
Technical Specifications
| X-axis traverse: | 7.000 mm |
|---|---|
| Y-axis traverse: | 1.250 mm |
| Z-axis traverse: | 1.500 mm |
| Spindle taper: | ISO 50 |
| Spindle speed: | 6.000 r.p.m. |
| Power: | 37 kw |
| Machine weight: | 40.000 kgs |
| Machine dimensions: | 11900 x 5170 x 4225 mm |
| Control | HEIDENHAIN 530 |

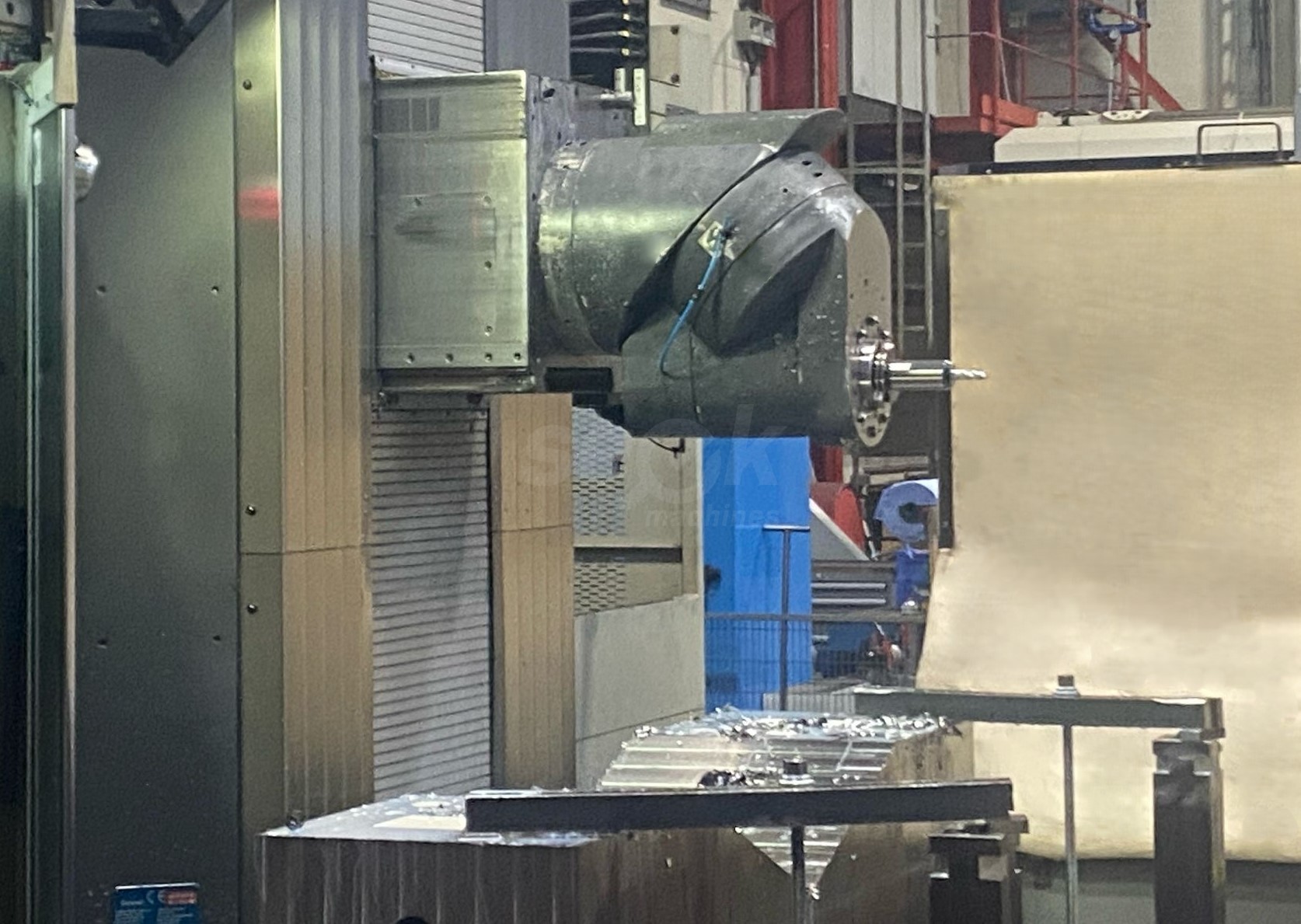

| Head | Automatic UAD 0.02º-0.02º |

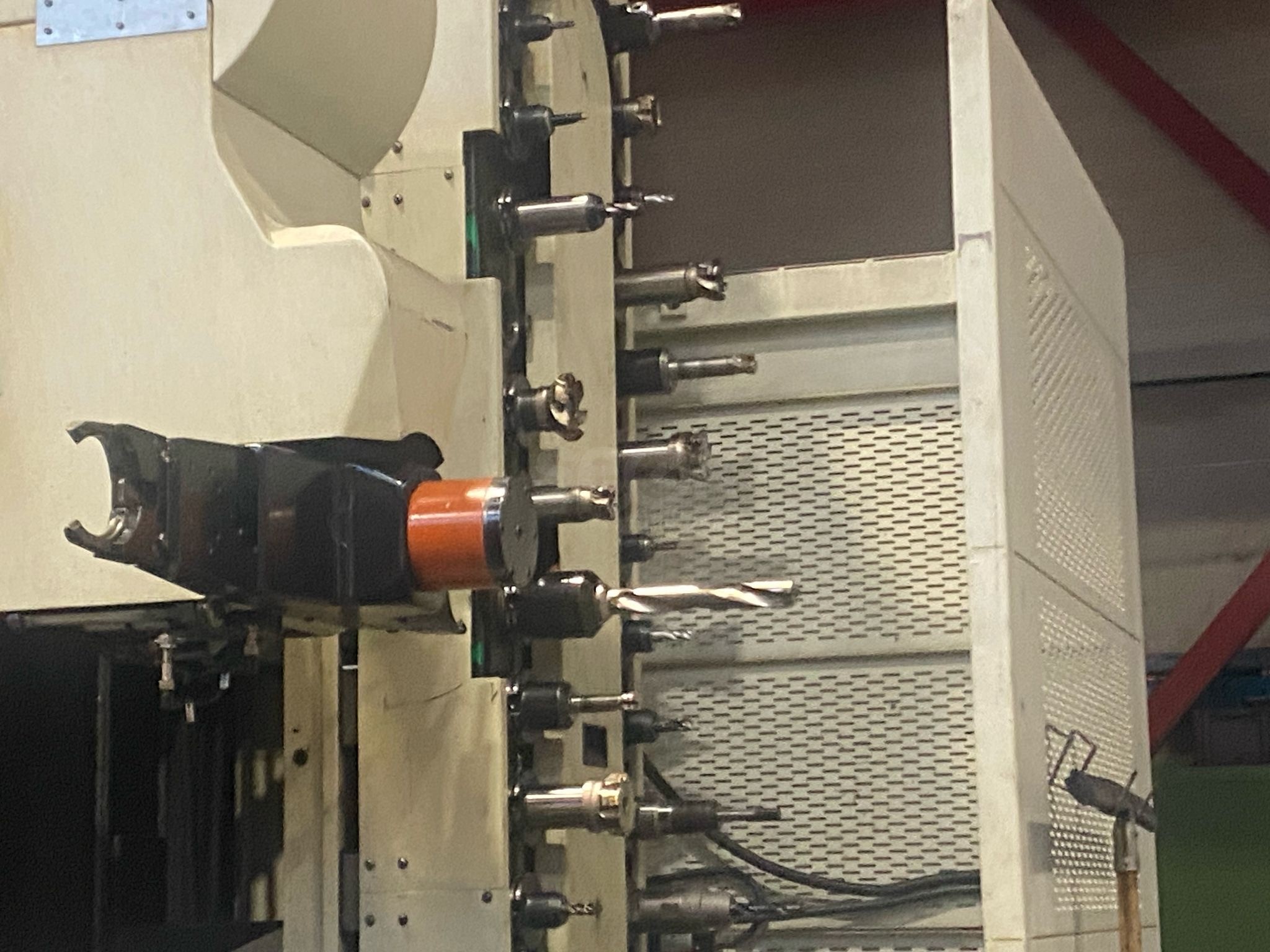

| Tool Changer: | 60 tools |
| Electronic handwheel: | HEIDENHAIN HR-410 |

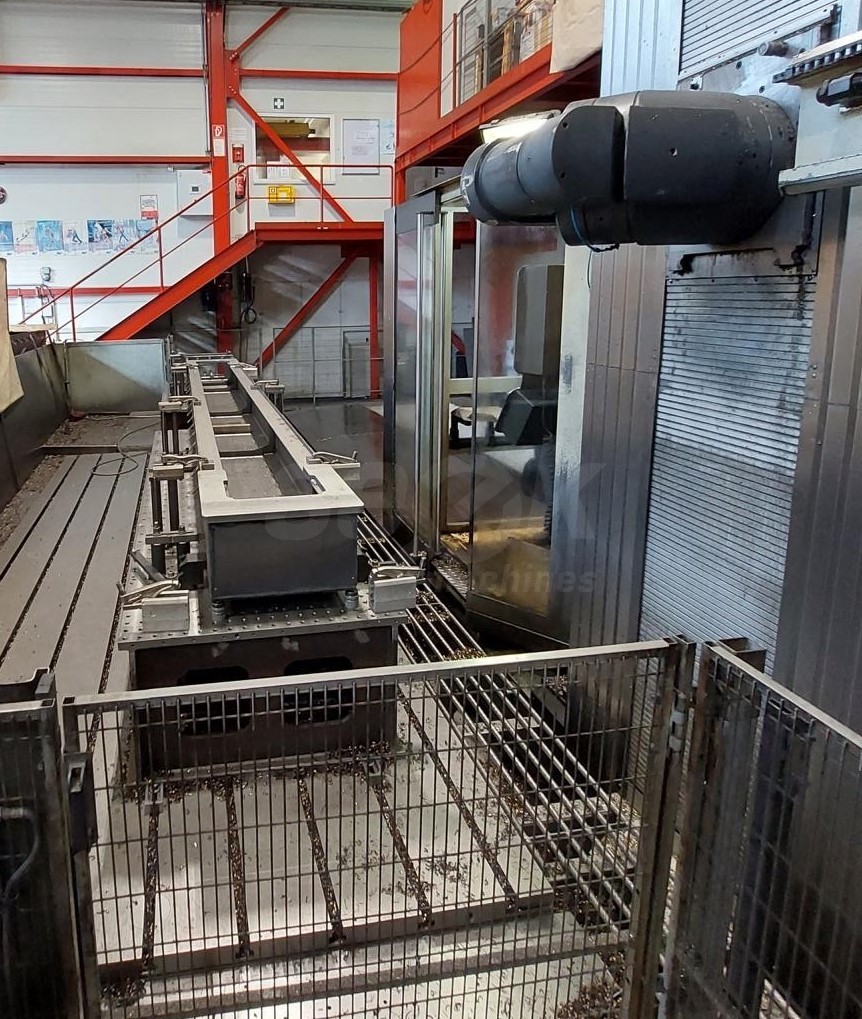

| 2 stolle tables | 4000X2400 mm each |
